Variable-diameter screw
Variable-diameter screw
HGMS series Fine thread pair
HGMS series Fine thread pair
Product features
HGMS series fine thread pair, made of stainless steel, M6x0.25 ultra-fine thread (the screw rotates for one circle, and the axial displacement is only 0.25MM), and the sensitivity reaches 0.001MM. When quantitative adjustment is not required, it can provide adjustment function with higher accuracy than ordinary micrometer head. Equipped with copper nuts, excellent wear resistance, locking function, anti vibration and anti loosening. The installation dimension is the same as that of the micrometer head, which is convenient for interchange. Two end and tail structures are convenient to use.
It is suitable for micro motion design, automation design, instrument design, aerospace design and many other fields.
The high-quality stainless steel rod body and high-quality copper sleeve are adopted, and the products are produced after blanking, rough cutting, fine cutting, rough grinding, fine grinding, quality control, logistics control and other processes, so as to ensure that the products sent to users are one in a hundred.

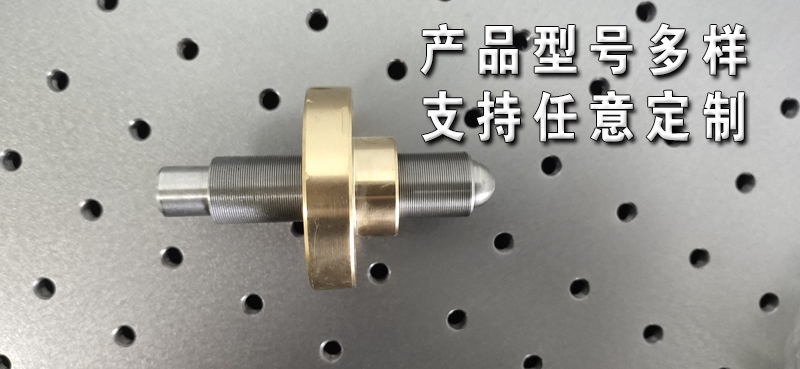

Screw pairM16
Screw pairM16
Product features

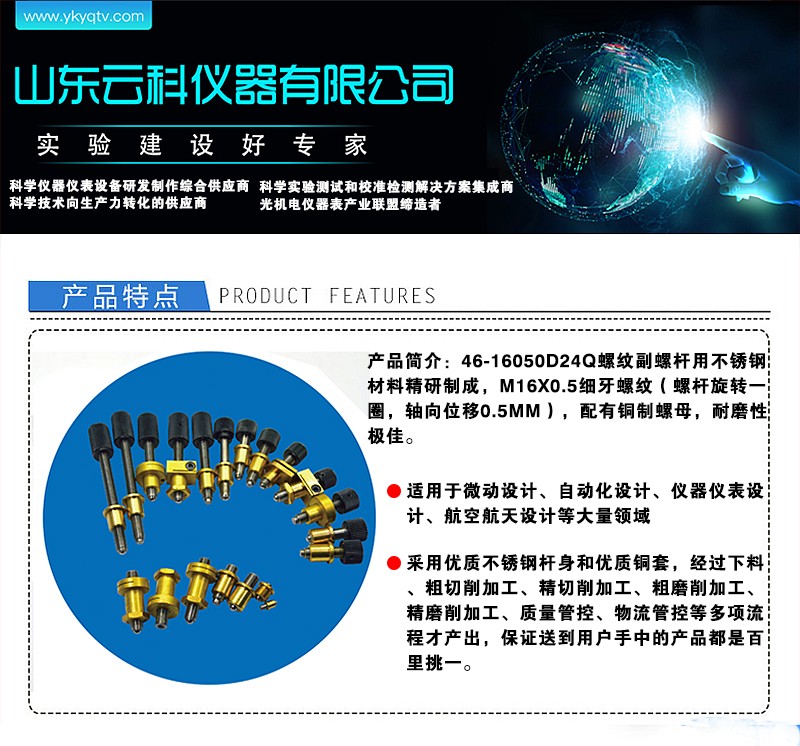

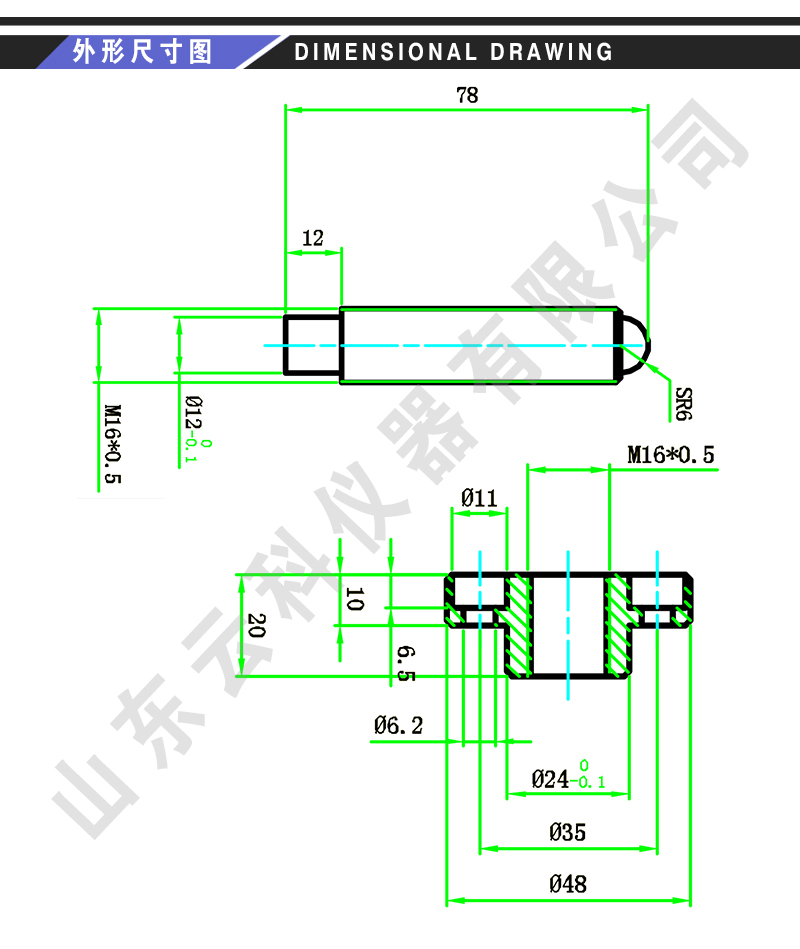

Product Description: 46-16050D24Q threaded auxiliary screw is made of stainless steel, M16x0.5 fine thread (screw rotates for one circle, axial displacement is 0.5MM), equipped with copper nut, with excellent wear resistance.
It is suitable for micro motion design, automation design, instrument design, aerospace design and many other fields
The high-quality stainless steel rod body and high-quality copper sleeve are adopted, and the products are produced after blanking, rough cutting, fine cutting, rough grinding, fine grinding, quality control, logistics control and other processes, so as to ensure that the products sent to users are one in a hundred.

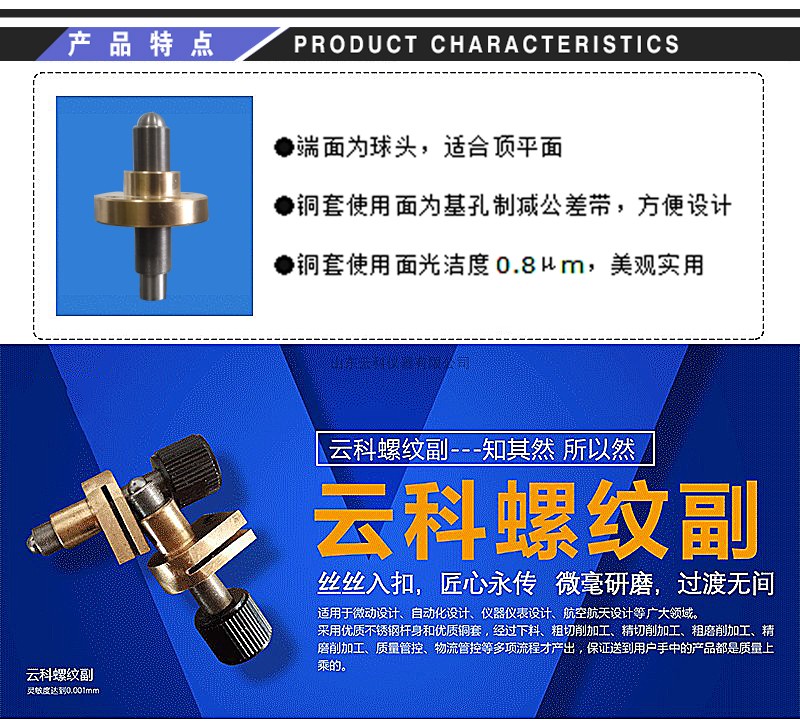

Product characteristics
The end face is a ball joint, which is suitable for the top plane.
The use surface of the copper sleeve is the base hole, and the tolerance zone is made to facilitate the design.
The surface finish of copper sleeve is 0.8um, beautiful and practical.
