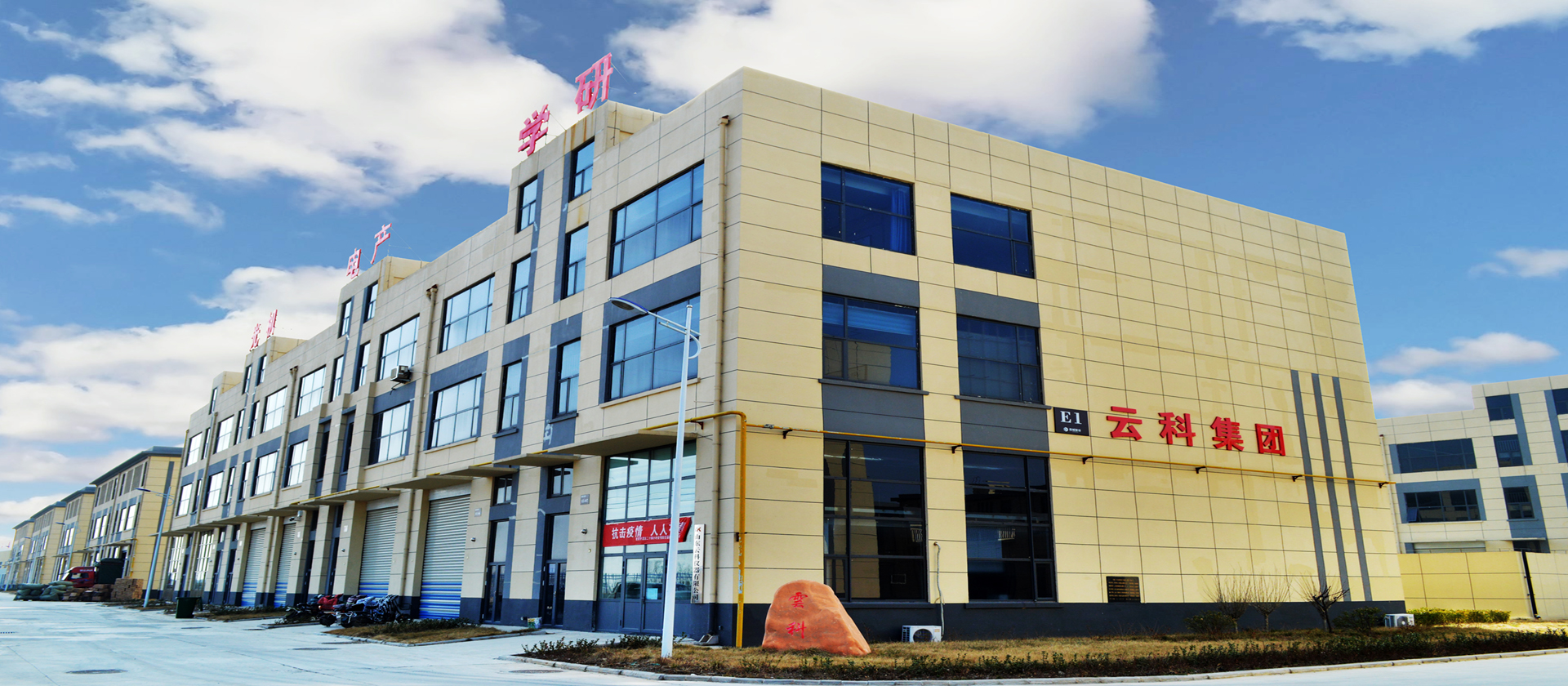

Yunke Group was founded in 2012 and is headquartered in the Yellow River Old Road Forest Park, a national AAAAA-level scenic spot, and an important global agricultural and cultu...
2015Year
Founded
2Ten thousand squar
Area
科學儀器above
Professional technic

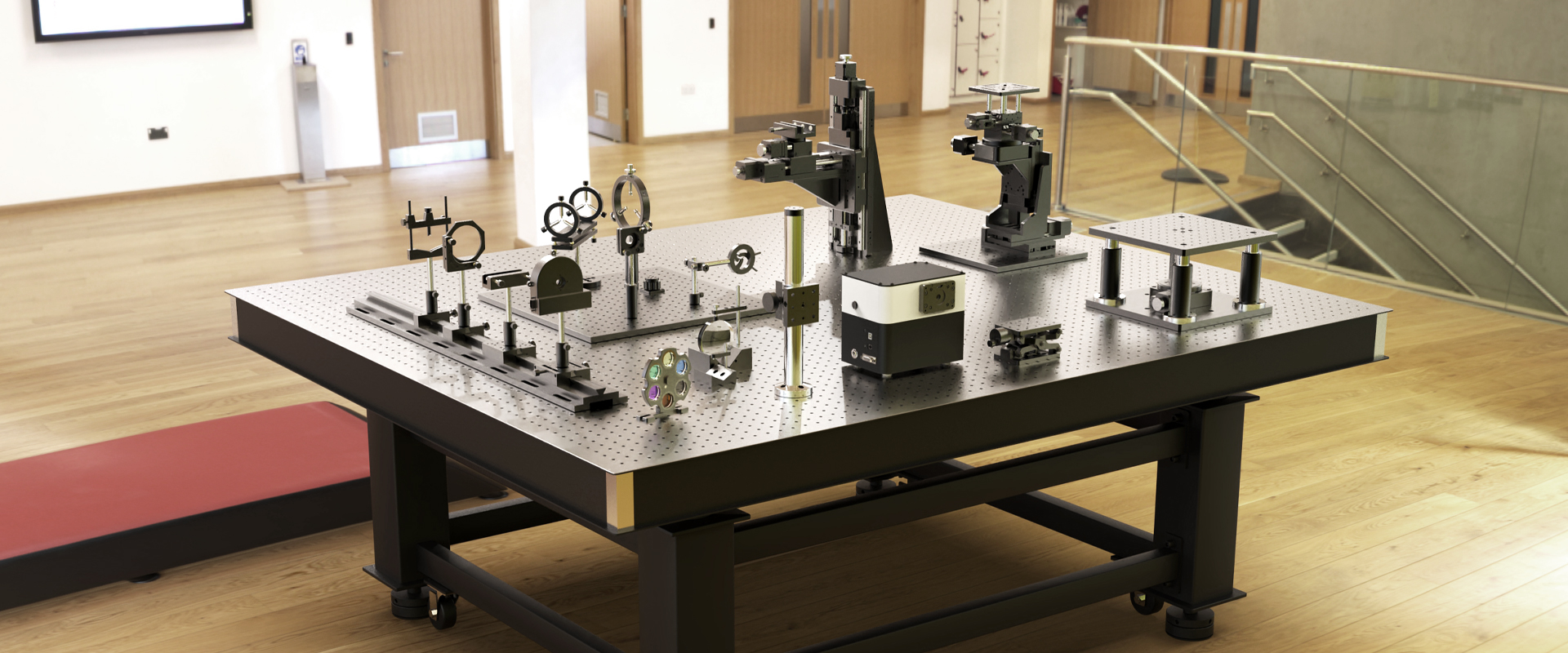

Yunke optical vibration isolation platform is composed of steel honeycomb core, roof and bottom plate, which provides sufficient hardness under the premise of reducing weight. The roof of the optical vibration isolation platform is made of stainless steel with high magnetic conductivity, the bottom plate is carbon steel plate, and the inner layer of the side plates is carbon steel plate and the outer layer is black aluminum plastic plate.
The product description
HGVA315 electric lifting platform can provide lifting movement, small volume, high precision, suitable for the occasion of height adjustment. It can also be used to achieve fine tuning movement under a microscope.
Product features
1, the use of stepping motor drive, realize the lifting displacement automatic adjustment, automatic control;
2, high precision precision grinding screw drive, with power self-locking function;
3, using steering mechanism, save space;
4, precision cross roller guide rail, high precision and stable operation;
5. The motor is placed vertically and laterally, with compact shape and stable operation;
6, the upper and lower limit switch effectively protect the product, photoelectric switch as zero, high precision;
7, servo motor can be equipped; Faster and more accurate.
Product technical parameters
Product outline dimension drawing
Physical product drawing
Main technical parameters
(1) Focal length of objective lens (theoretical value) F= 500mm
(2) Effective aperture: φ 80mm
(3) Field of view: 3°20 '
(4) Lighting bulb: 6V LED
(5) Resolution: 1.8"
(6) Overall size: 570× φ 90mm
(7) Weight: about 0.6kg
Instrument use:
Parallel light tube is obtained through it from the infinite distance of parallel light beam, this light beam is called parallel light. It is an important tool for assembling and adjusting optical instruments, and also an important part of optical measuring instruments. With different demarcation plates, micrometer lenses, or microscope systems, it is possible to measure the focal length, discrimination, and other imaging qualities of the lens group. The attached adjusted plane reflector is fixed on the workpiece with the moving straight line, and the moving workpiece can be checked by observing through the Gaussian eyepiece on the light tube with the Gaussian autocollimation lens attached to the light tube.
Working principle:
Figure 1 shows the working principle of pgF500-80-1 parallel optical tube. The cross partition board 2, which serves as the inspection reference target, is uniformly illuminated by light source 1. If the cross splitter 2 is located exactly in the focal plane of objective 3, then the light passing through the cross splitter 2 is refracted by objective 3 as a parallel beam, which is also equivalent to the beam from the target at infinity.
1. Light source component 2. Differentiation plate 3
平行光管外形結構和尺寸圖/Construction and dimensions
產品實拍/The product will
Product features
1, equipped with stepper motor and standard DB9 interface, with HGC series motion controller can achieve automatic control;
2, imported high-quality ball screw drive, high repeatable positioning accuracy, long life;
3, precision linear bearing guide rail, comfortable movement, good vertical use effect;
4, the stepper motor and ball screw are connected by high-quality elastic coupling, the transmission synchronization noise is small, the matching control system of our company can be selected to achieve high resolution control;
5, the motor adopts double shaft, equipped with handwheel, easy to debug;
6, both ends are equipped with zero and limit switch, convenient and accurate positioning, special instructions can be installed mechanical limit;
7, using standard mounting hole, convenient combination;
8, replaceable servo motor, high speed, high precision, high load operation occasions.
Product introduction and usage
This product is mainly used for the object translation movement, including horizontal translation and vertical translation, through different control procedures to achieve horizontal and vertical reciprocating movement, intermittent movement, micro processing and teaching demonstration. It can be used as auxiliary equipment for research and experiment in optics, kinematics, vibration, mechanics and other fields in laboratories and colleges in various fields.
產品技術參數/Product technical parameters
產品尺寸/Product size
尺寸說明/Size specification
產品實拍/The product will
Product features
1. The working table is placed horizontally, the driving force is in the center of the table, and the four guide rails around are positioned to solve the problem of partial load caused by vertical use of the translation table, and the stability is naturally superior;
2, imported high-quality ball screw drive, repeat positioning accuracy, long life;
3, fine grinding worm gear pair drive, large load bearing, subdivision adjustment, self-locking function;
4, the guide rail is linear bearing guide rail, high precision, large load bearing, lifting quantitative adjustment;
5, the base has standard hole pitch through hole, convenient installation;
6, can be installed organ cloth dust cover, effective dust, beautiful and generous.
| 產品型號 | HGVA985 |
| 行程 | 85mm |
| 絲杠導程 | 5mm |
| 傳動比 | 180:1 |
| 軟件控制“螺距”輸入 | 0.028mm |
| 控制軟件“細分數”輸入 | 3200 |
| 重復定位精度 | 0.05mm |
| 電機（標配） | 42 步進電機（1.8°） |
| 額定工作電流 | 1.7A |
| 中心負載 | 100kg |
| 自重 | 17kg |
產品簡介及用途
HGVA985 電動升降臺為山東云科 HGVM985 手動升降臺電動款，是一款高分辨 率大負載、短行程精密升降機構?？梢杂脕韺饴费b置進行調整，也可作為激光 干涉測量裝置。是山東云科自主設計研發生產的一款性價比優越的升降裝置。該 系列有多種行程可供選擇，特殊需求接受定制。
產品實拍
相關產品
1, small size, light weight, reserved mounting holes, threaded holes and standard hole spacing, vertical installation, horizontal installation, flexible choice, but also can be used with our company's own production of integrating ball and light source, the overall versatility;
2, 20 (28) stepper motor and refined transmission structure, small air return, two-way precise limit;
3, excellent workmanship, durable;
4, continuous adjustable aperture;
產品參數/Product parameters
| 型號 | HGEMD20 | HGEMD52 | HGEMD60 |
| 孔徑 | 1.3mm-20mm | 3mm-52mm | 8mm-60mm |
| 調節精度 | ±0.05mm | ±0.1mm | ±0.1mm |
| 重復定位精度 | ±0.02mm | ±0.02mm | ±0.02mm |
| 標配電機 | 20 步進電機 | 28 步進電機 | 28 步進電機 |
| 最大調節速度 | 4mm/s | ||
| 控制方式 | 單片機 | ||
| 低調節范圍精度 | ±0.1mm（0.8-2mm） | ±0.2mm（3-4mm） | ±0.3mm |
產品尺寸/Product size
產品說明/The product description
產品實拍/The product will
相關配套產品/Related supporting products
Product features:
1. Standard equipped with stepper motor and standard RS232 interface, can increase the photoelectric zero, with HGC series motion controller can achieve automatic control;
2. The rotating shafting is made of bearing steel, with high precision, large bearing capacity and long service life;
3. Worm wheel and worm structure is adopted for transmission, and the table can be rotated freely;
4. The worm wheel and worm are carefully grinded and matched to make the movement comfortable and the air return is very small;
5. Cleverly designed clearance elimination structure can adjust the clearance caused by long-term use;
6. The diameter of the center through hole is limited by tolerance, and the center of the through hole coincides with the rotating center for convenient positioning;
7. Stepper motor and worm are connected by imported high-quality elastic coupling, synchronous transmission and low noise;
8. The outer ring of the table is a scale ring, and the circle can rotate relative to the table to facilitate reading and initial positioning;
9. Replaceable servo motor, suitable for industrial applications.
產品技術參數：
| 產品型號 | HGRA145 | HGRA160 | HGRA1100 | HGRA1200 | HGRA1400 |
| 臺面直徑 | 45 | 60 | 100 | 200 | 400 |
| 傳動比 | 90;1 | 180;1 | 720;1 | ||
| 重復定位精度 | ＜0.01° | ＜0.005° | ＜0.003° | ||
| 標配電機 | 42步進電機（1.8°） | 57步進電機（1.8°） | |||
| 最大靜轉矩 | 0.4Nm | 1.2Nm | |||
| 定額工作電流 | 1.7A | 2.8A | |||
| 最大速度 | 50°/sec | 25°/sec | 5°/sec | ||
| 分辨率（8細分） | 0.0025° | 0.00125° | 0.0003125° | ||
| 中心通孔直徑 | φ8.5+0.025 | 無 | φ46+0.025 | φ90+0.025 | 無 |
| 標配零位 | 無 | 無 | 有 | 有 | 無 |
| 中心最大負載 | 15kg | 30kg | 50kg | 60kg | 80kg |
| 自重 | 0.65kg | 1kg | 1.54kg | 7.7kg | 19.75kg |
產品實拍
可配我是運動控制器使用！
Product features
★ Used for large stroke, non-quantitative, large load lifting adjustment;
★ Adopt scissor lifting support, fine grinding screw drive, double guide rail and five axis over positioning mechanism, ensure smooth and comfortable movement, high precision, large load bearing;
★ The upper and lower sides of porous design, strong applicability, can be used as mounting surface;
產品參數
| 產品型號 | HGVM0160 | HGVM0160R | HGVM02120 |
| 行程 | 60mm | 60mm | 120mm |
| 靈敏度 | 0.01mm | 0.01mm | 0.01mm |
| 臺面尺寸 | 80*120mm | 80*120mm | 140*220mm |
| 負載 | 20kg | 20kg | 25kg |
| 自重 | 1.15kg | 1.15kg | 3.5kg |
| 標尺 | 無 | 有 |
實拍圖片
