HGPT optical platform grade 00 marble air float cabinet type vibration isolation table
HGPT optical platform grade 00 marble air float cabinet type vibration isolation table
Yunke optical vibration isolation platform is composed of steel honeycomb core, roof and bottom plate, which provides sufficient hardness under the premise of reducing weight. The roof of the optical vibration isolation platform is made of stainless steel with high magnetic conductivity, the bottom plate is carbon steel plate, and the inner layer of the side plates is carbon steel plate and the outer layer is black aluminum plastic plate.
HGISLA300C98N001 Wide spectrum integrating sphere uniform light source
HGISLA300C98N001 Wide spectrum integrating sphere uniform light source
產品說明/The product description
The light source can simulate night sky light environment and starlight moonlight environment, providing weak light with stable color temperature and uniform illumination for scientific experiments. 1, the diameter of the integrating sphere 300mm, the light outlet 80mm, 2, the spectrum range: 300-2500nm; Light source color temperature 2856K±50K;
主要性能指標
| 型號 | HGISLA300C98N001 |
| 積分球直徑 | 300mm |
| 出光口 | 80mm |
| 光譜范圍 | 300-2500nm |
| 光源色溫 | 2856K±50K |
| 出光口照度 | 均勻性優于 95% |
| 控制器通訊接口 | 232串口通訊 |
| 設備總重 | 約 10Kg |
產品實拍/Product photos

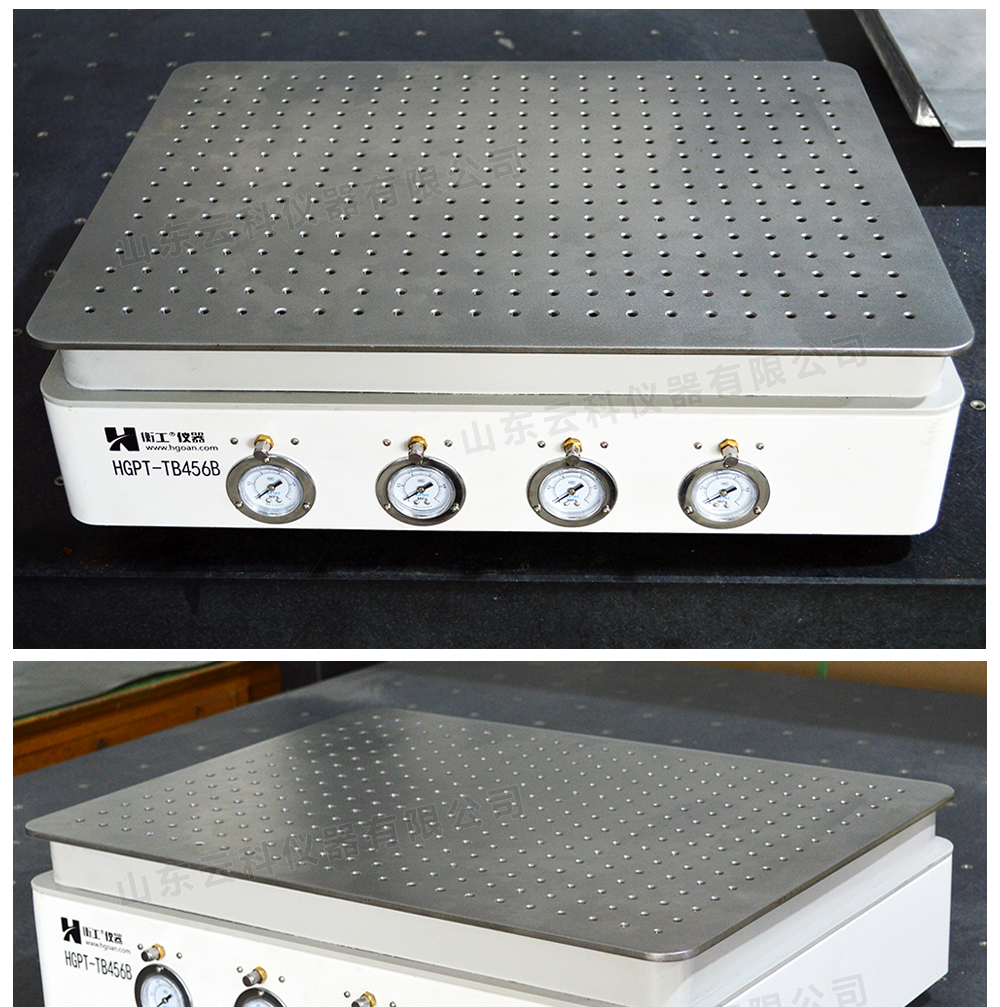

Hgpt-tb table type air floating vibration isolation platform
Hgpt-tb table type air floating vibration isolation platform

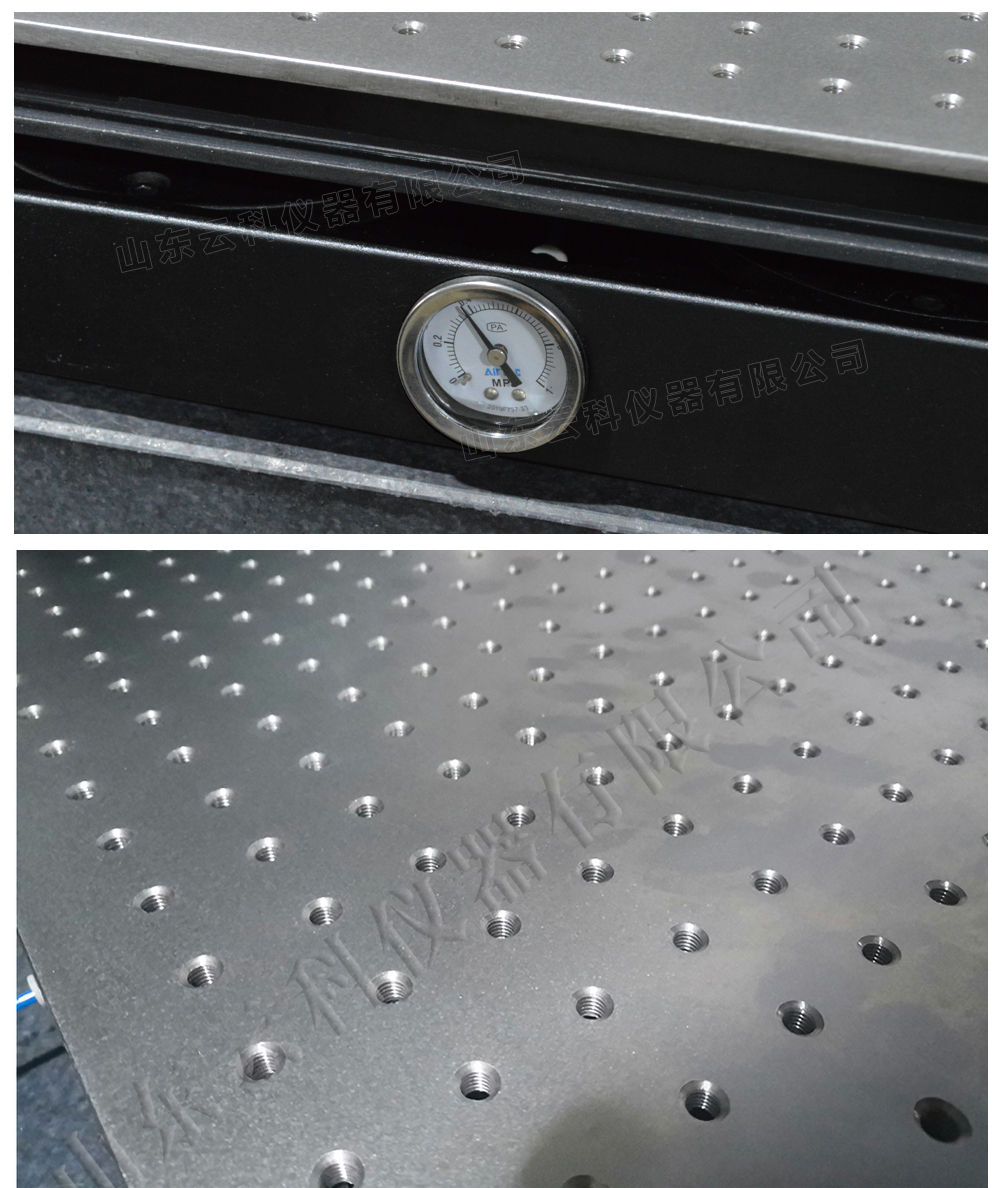

High quality steel honeycomb countertops:
Yunke optical vibration isolation platform is composed of steel honeycomb core, roof and bottom plate, which provides sufficient hardness under the premise of reducing weight. The roof of the optical vibration isolation platform is made of stainless steel with high magnetic conductivity, the bottom plate is oxidized carbon steel plate, and the inner layer of the side plates is carbon steel plate and the outer layer is black aluminum plastic plate.

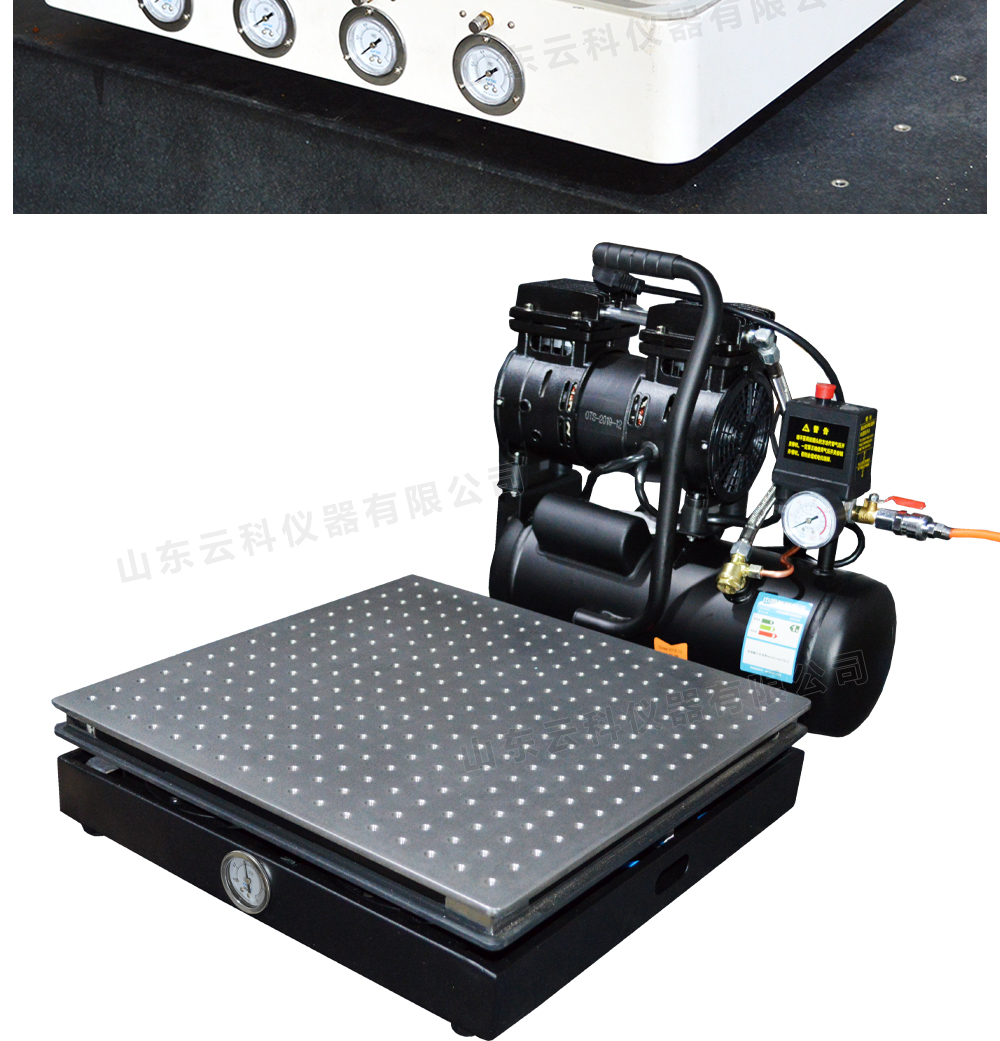

Air floating isolation device:
Pneumatic anti-vibration device, in line with JISD-4101 air cushion pressure test standard; Natural frequency 3Hz~5Hz, maximum operating pressure 4.5kg /cm^2. ; Body made of Neoprene Rubber, good air tightness. Anti-vibration effect is very high, the efficiency of general equipment can reach more than 97%.
Technical indicators:
Fixed screw hole: metric, M6 screw hole 25mm grid.
Screw hole/core seal: Cup cylindrical seal for easy cleaning (depth: 25mm)
Damping form: bread board standard damping form + air floating vibration isolation flatness is not more than 0.05mm/m2; The surface roughness is less than 0.8um-1.6um; Natural frequency 2.6-5.5Hz; Amplitude not more than 5um, isolation efficiency
97%; Load: ≤120Kg.
產品實拍/The product will
Optical electric lifting table high precision electronic control displacement table optical mechanical laboratory slide table micro adjustment table
Optical electric lifting table high precision electronic control displacement table optical mechanical laboratory slide table micro adjustment table
The product description
HGVA315 electric lifting platform can provide lifting movement, small volume, high precision, suitable for the occasion of height adjustment. It can also be used to achieve fine tuning movement under a microscope.
Product features
1, the use of stepping motor drive, realize the lifting displacement automatic adjustment, automatic control;
2, high precision precision grinding screw drive, with power self-locking function;
3, using steering mechanism, save space;
4, precision cross roller guide rail, high precision and stable operation;
5. The motor is placed vertically and laterally, with compact shape and stable operation;
6, the upper and lower limit switch effectively protect the product, photoelectric switch as zero, high precision;
7, servo motor can be equipped; Faster and more accurate.
Product technical parameters
Product outline dimension drawing
Physical product drawing
Wide range star-moon night weak illuminance meter optical experiment reverse reflection detection instrument intelligent test instrument
Wide range star-moon night weak illuminance meter optical experiment reverse reflection detection instrument intelligent test instrument
ZGDIM7 wide range microilluminometer system
Introduction of instrument
HGDIM7 wide range microilluminometer system belongs to intelligent test instrument, suitable for military night vision test, reverse reflection material test, car lamp test and other applications. Its response speed is fast and sensitivity is high. Through the national Metrology Institute direct calibration, accurate value, wide range, high resolution, reliable use.
儀器組成及裝箱單
Instrument photos
HGVM06 series manual screw lifting platform
HGVM06 series manual screw lifting platform
HGVM0610 product features
Super small volume design, saving space, easy to operate;
Precision thread drive, spring return, eliminate empty return;
★ A variety of supporting products, can be combined with HGMB5/MB7 base plate, HGTMO2213/HGTM04225 translation platform, HGIM0503 biaxial tilt platform, etc.
HGVM0605 features
Super small volume design, saving space;
Precision thread drive, spring return, eliminate empty return;
★ Can be connected to HGIM0405 biaxial tilt table and HGTM01113 or HGTM02113 translation table, combined into a multi-dimensional adjustment table.
產品參數
產品尺寸
產品實拍
