Laser LV03 Laser level
Laser LV03 Laser level
Product introduction
1. Yunke laser level ruler sends a straight line from the object surface and can form any angle. It is suitable for woodworking, stair starting board, shelf, forming, tile laying, curtain installation, wall hanging painting or any other work requiring accurate alignment.
2. The horizontal accuracy of laser beam is 0.25mm/m, the vertical accuracy is 0.5mm/m, the light wave is 650nm-680nm, the output power is 5MW, the illumination range is 20m, and the indoor illumination range is 6-8m during the day.
3. There are three beam route modes: cross, horizontal and vertical. Customers can adjust the laser head up and down according to their needs.
Product features
1. Cross laser measures whether many objects are on the same line.
2. Three bubble water leveler is used for accurate plane or vertical alignment.
3. The ruler function of the left and right sides of the level.
4. With 250MM circle ruler, it is more convenient to measure distance.
HGISLA300C98N001 Integrating sphere
HGISLA300C98N001 Integrating sphere
Product information
The light source can simulate the night sky light environment, starlight and moonlight environment, and provide weak light with stable color temperature and uniform illumination for scientific experimental research.
Main performance indexes:
1. Integrating ball diameter 300MM, light outlet 80MM;
2. Spectral range: 300-2500NM; Color temperature of light source 2856K ± 50K;
3. The illumination uniformity of light outlet is better than 95%;
4. The illuminance of the integrating sphere is continuously adjustable through the electric diaphragm, and the adjustable range is 0 ~ 102LX (illumination at the ball wall); Adjustable illuminance accuracy 0001LX; Both light sources are equipped with diaphragm, and the illumination can be adjusted in a large range.
5. Controller communication interface: 232 serial port communication.
6. Total weight of equipment: About 10kg.

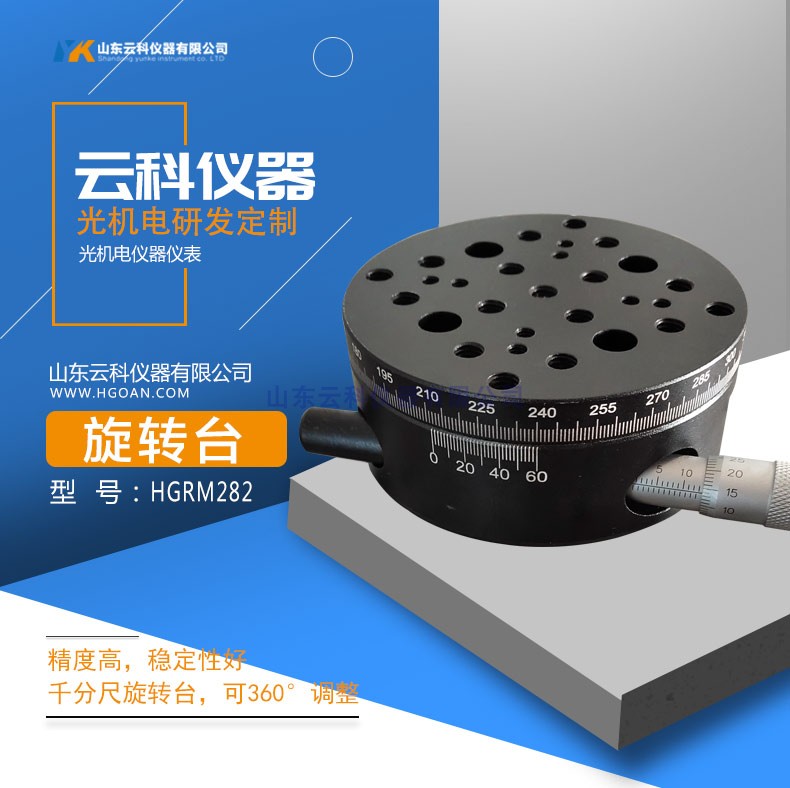

HGRM282 Micrometer rotary table
HGRM282 Micrometer rotary table
Product features
★ the table can be adjusted by 360 rotation
★ it can make fine adjustment in a certain range. The fine adjustment is driven by the micrometer head, spring return, high resolution and no empty return
★ precision shafting design, high precision and good stability
★ the circumference is marked 360 ° to facilitate reading
★ there are connecting holes with standard hole spacing at the upper and lower parts, which is convenient to connect with other displacement tables to form a multi-dimensional mobile table
★ lock the screw. After locking, you can turn the right handle to fine tune the turntable. After loosening the lock screw, you can directly and quickly turn the table by hand.
Screw pairM16
Screw pairM16
Product features
Product Description: 46-16050D24Q threaded auxiliary screw is made of stainless steel, M16x0.5 fine thread (screw rotates for one circle, axial displacement is 0.5MM), equipped with copper nut, with excellent wear resistance.
It is suitable for micro motion design, automation design, instrument design, aerospace design and many other fields
The high-quality stainless steel rod body and high-quality copper sleeve are adopted, and the products are produced after blanking, rough cutting, fine cutting, rough grinding, fine grinding, quality control, logistics control and other processes, so as to ensure that the products sent to users are one in a hundred.
Product characteristics
The end face is a ball joint, which is suitable for the top plane.
The use surface of the copper sleeve is the base hole, and the tolerance zone is made to facilitate the design.
The surface finish of copper sleeve is 0.8um, beautiful and practical.
HGMMA series three-dimensional camera adjustment frame
HGMMA series three-dimensional camera adjustment frame
1. Product name and model
HGMMA series three-dimensional camera adjustment frame
2. Product features
● With three-dimensional fine-tuning device, two-dimensional tilt and one-dimensional rotation;
● Adopt precise shaft system rotation adjustment, stable and reliable positioning;
● The circle is engraved at 360°, which is convenient for reading, and the rotation dimension is equipped with a locking device;
● M6X0.25 fine thread screw adjustment, high-quality disc spring return, elasticity adjustable to rigidity;
● Cameras or other laser equipment of Ф20mm and Ф60mm can be installed;
● Special specifications can be customized.
This product is a multi-functional adjustment mechanism that can be installed with cameras or other laser equipment for three-dimensional precision adjustment. Among them, HGMMA20 can also be equipped with lenses to achieve three-dimensional adjustment (this kind of use is our HGMMP2254 polarizing lens frame product). The whole mechanism can be installed horizontally or vertically, which is convenient to use and flexible in installation.
(It is best to have a vertical and horizontal installation photo here, a photo of a support rod installed below, a rod frame, 3 series slide rails and matching sliders installed below, + an additional set of three-dimensional translation tables installed below to hold a flashlight The lens is placed in the front, followed by flashlight-lens-white screen (white or black sprayed on the aluminum plate), etc.
3. Technical indicators
4.Dimensions
HGMMA series three-dimensional camera adjustment frame
HGMMA series three-dimensional camera adjustment frame
1. Product name and model
HGMMA series three-dimensional camera adjustment frame
2. Product features
● With three-dimensional fine-tuning device, two-dimensional tilt and one-dimensional rotation;
● Adopt precise shaft system rotation adjustment, stable and reliable positioning;
● The circle is engraved at 360°, which is convenient for reading, and the rotation dimension is equipped with a locking device;
● M6X0.25 fine thread screw adjustment, high-quality disc spring return, elasticity adjustable to rigidity;
● Cameras or other laser equipment of Ф20mm and Ф60mm can be installed;
● Special specifications can be customized.
This product is a multi-functional adjustment mechanism that can be installed with cameras or other laser equipment for three-dimensional precision adjustment. Among them, HGMMA20 can also be equipped with lenses to achieve three-dimensional adjustment (this kind of use is our HGMMP2254 polarizing lens frame product). The whole mechanism can be installed horizontally or vertically, which is convenient to use and flexible in installation.
(It is best to have a vertical and horizontal installation photo here, a photo of a support rod installed below, a rod frame, 3 series slide rails and matching sliders installed below, + an additional set of three-dimensional translation tables installed below to hold a flashlight The lens is placed in the front, followed by flashlight-lens-white screen (white or black sprayed on the aluminum plate), etc.
3. Technical indicators
4.Dimensions
