Product features

★ The guide rail is precision cross roller guide rail, higher precision, large load bearing, long life;

Displacement adjustment with small shape of the same stroke micrometer head;

★ Use spring return to eliminate axial clearance:

★ Thinner thickness, lighter weight;

The locking part increases the large friction gasket, locking more firmly, and is not easy to scratch the surface;

★ Table and base distribution of standard hole spacing mounting holes, convenient installation and combination;

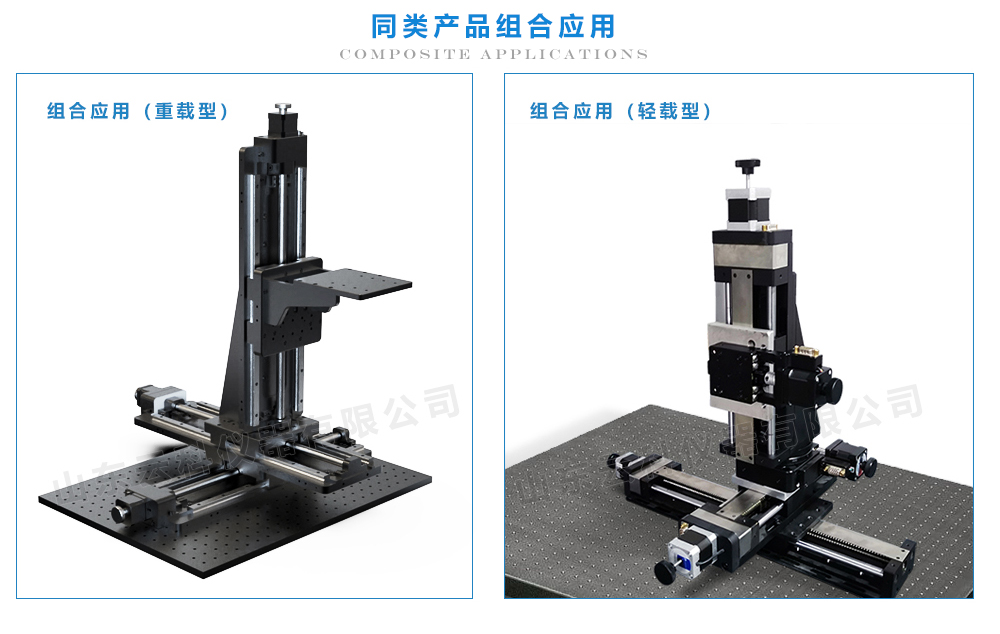

★ It can be combined with other series of displacement tables to form multi-dimensional adjustment frame.

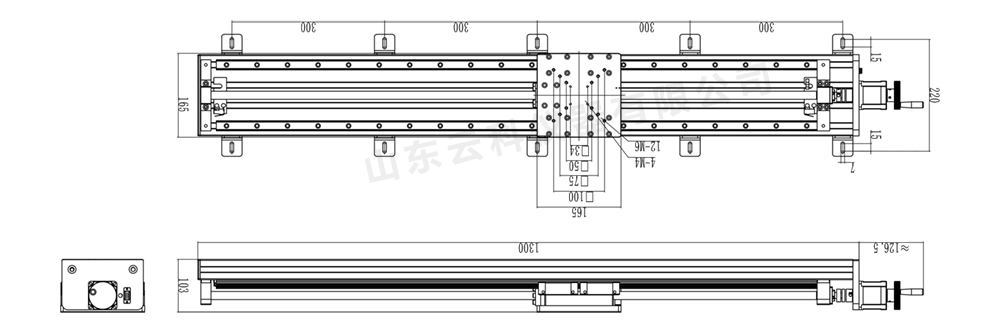

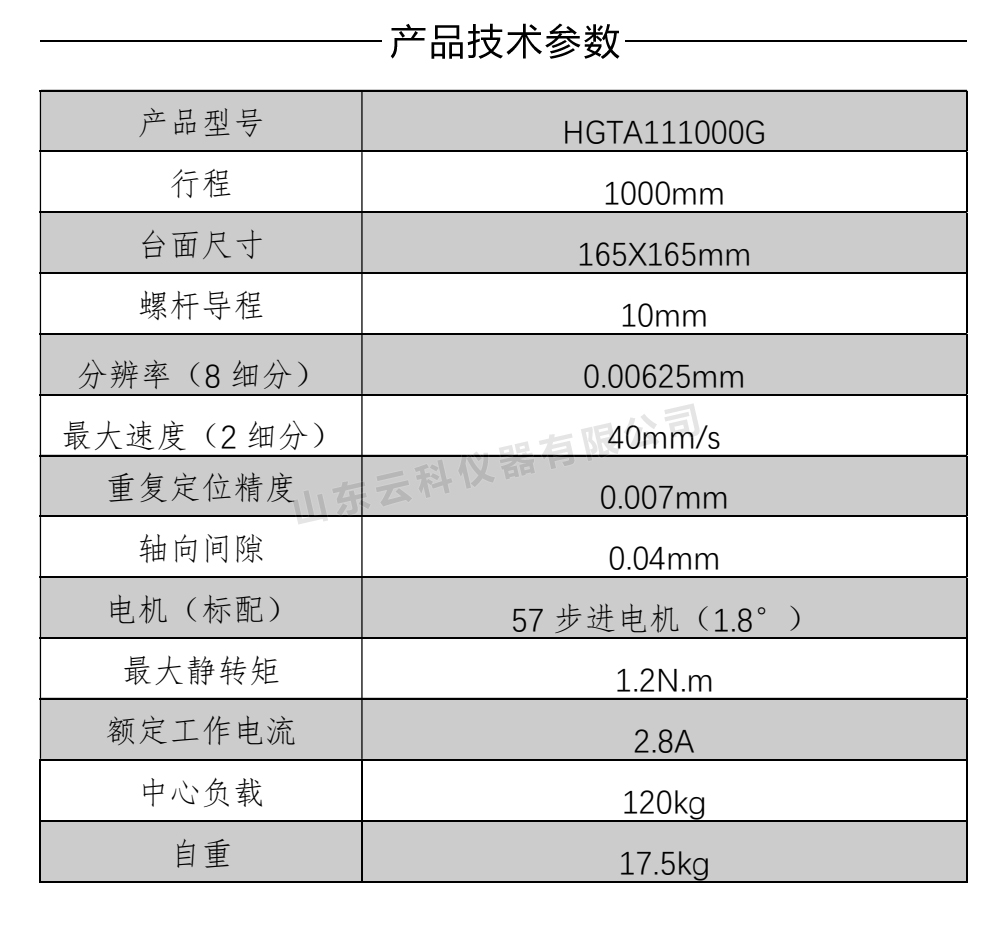

產品參數和外觀尺寸圖

產品實拍

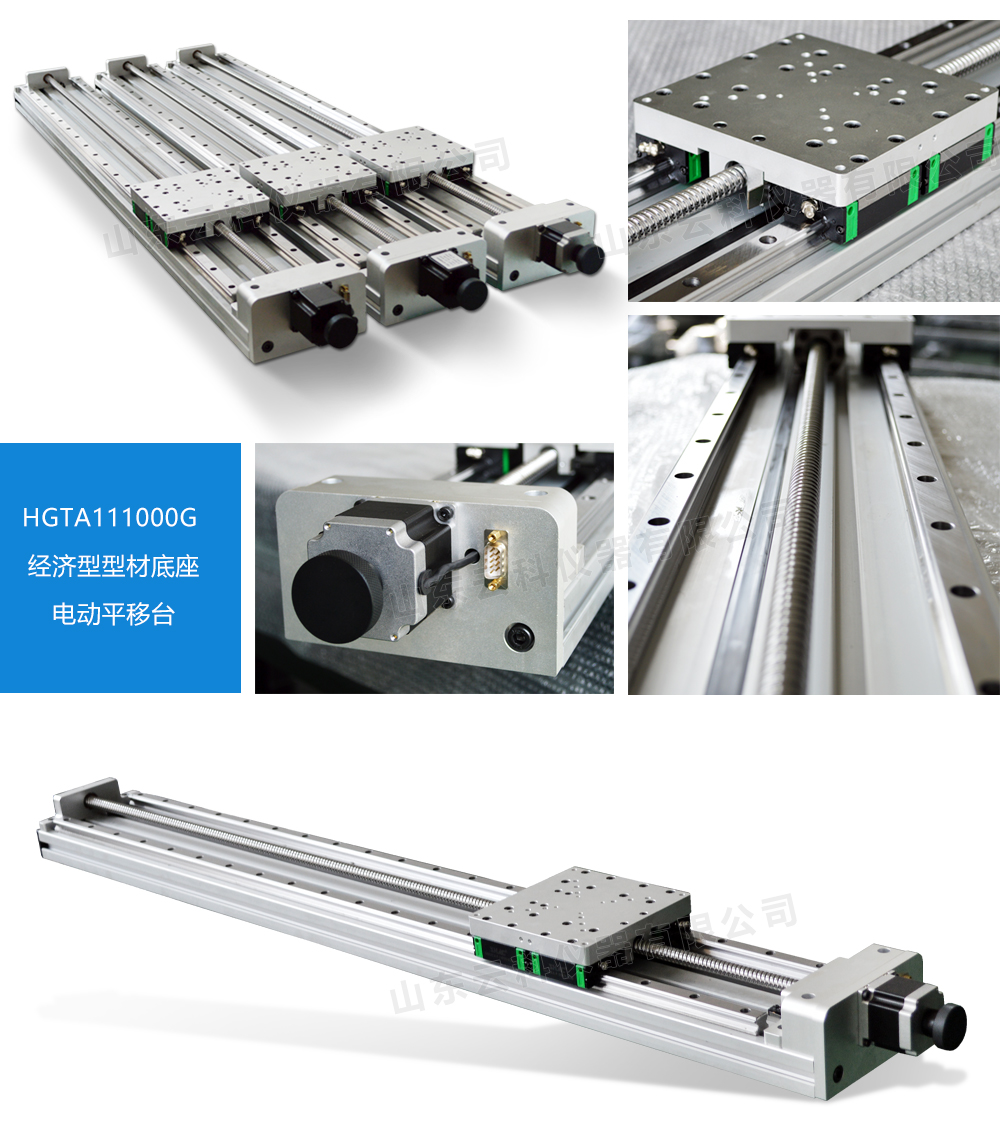

Product features

● Equipped with stepper motor and standard DB9 interface, with HGSC series motion controller can achieve automatic control;

● Imported high-quality ball screw drive, repeat positioning precision, long life;

● Precision linear bearing guide rail, comfortable movement, good vertical use effect;

● Stepper motor and ball screw through high quality elastic coupling connection, transmission synchronization noise is small, optional our company supporting control system, to achieve high resolution control;

● Motor adopts double shaft, equipped with large handwheel, easy to debug;

● Both ends are equipped with zero and limit switches, special instructions can be added mechanical limit, convenient accurate positioning and protection of products;

● Replaceable servo motor, high speed, high precision, high load operation occasions;

● The base adopts economical and beautiful overall aluminum profile, strong practicability, large load, high speed and other characteristics;

● Can be customized according to customer needs, different travel, load, etc

Product introduction and usage

This product is mainly used for translation of the object movement, through different control procedures to achieve horizontal reciprocating movement, intermittent movement, micro processing and teaching demonstration. It is suitable for laboratory and university to carry out research experiment in optics, kinematics, vibration, mechanics and other fields.

產品實拍

產品特點/Product features

1, grinding worm gear drive, annular ball with annular steel guide rail, comfortable movement, precision and reliability;

2, high quality elastic coupling connection, transmission synchronization noise is small;

3, equipped with zero and limit switch, convenient accurate positioning and protection of products;

4, mesa configuration installation with threaded hole, easy to fix;

5, there is a standard hole pitch threaded hole at the bottom, due to the small stroke, when supporting installation, please refer to the outline size diagram to configure the corresponding conversion plate.

產品簡介及用途/Produt introduction and usagec

XYZ003A360B45A five-dimensional electric displacement table can realize the space of the measured object 5 degrees of freedom adjustment, can be used for lasers or other occasions requiring multi-degree of freedom adjustment. It can be used on a separate optical platform, or installed with the base plane or other equipment through the adapter plate.

產品技術參數/parameter

產品實拍/The product will

Product features

1, equipped with stepper motor and standard DB9 interface, with HGC motion controller, can realize automatic control;

2. Adopt shear lifting support, fine grinding screw drive, double guide rail and five-axis positioning mechanism to ensure smooth, comfortable, high precision, large bearing capacity, low starting height;

3, the upper and lower porous design, can be used as installation surface, applicability is strong.

Product introduction and usage

HGVA180 electric lifting platform is a low starting height of a large load displacement lifting mechanism. Can be used to adjust the optical path device, also can be used as laser interferometry device. Shandong Yunke independent design, development and production of a cost-effective lifting device. Special requirements can be customized.

The product will

Product features

1, the lifting mechanism adopts precision ball screw drive with refined worm gear and worm reversing mechanism, small precision and can realize self-locking function; The support part adopts eight groups of linear bearing support to realize over-positioning and ensure smooth and reliable operation.

2, the translation mechanism adopts precision ball screw drive, high precision; Load selection of high-quality linear guide rail, large load, high precision, smooth operation;

3, high quality elastic coupling connection, transmission synchronization noise is small;

4, the lifting mechanism is configured with high and low limit switch, the translation mechanism is configured with zero and left and right end limit switch, convenient for accurate positioning and protection of products;

5, mesa configuration installation with threaded hole, easy to fix;

6, the bottom is installed with supporting feet and mobile casters, bearing large and convenient to move.

Product introduction and usage

HGAA2X04Z06001 two dimensional laser adjusting seat can achieve the measured object lifting and horizontal movement of two degrees of freedom adjustment, the table panel is equipped with 1mx0.6m optical aluminum plate can be fixed large size laser or other large equipment requiring multi-degree of freedom adjustment. It can be placed on the ground alone, with movable casters at the bottom for easy movement.

產品參數

產品實拍

Product features

● Six guide rail shear lifting mechanism, carefully grind double rotary screw drive, ensure the smooth movement, comfortable, high precision, large load, can be self-locking;

● Used for large stroke, non-quantitative, large load lifting adjustment;

● Equipped with locking handwheel, safe and reliable;

● There are mounting holes with standard hole spacing on the upper and lower, which is convenient to connect with other displacement tables. The bottom surface is equipped with long slot hole, which can be installed on the T-slot with M6 inner hexagon screw.

Product features

This product is suitable for large stroke, large load, no need for quantitative adjustment of vertical lifting occasions.

產品參數

產品實拍
